CIG stands at the forefront of networking innovation, offering a full range of optical transceiver solutions for data centers, high-performance computing, telecommunications including 5G wireless networks and other applications. With a rich legacy in design and extensive expertise in large-scale manufacturing, we create synergies of form, reach, speed, and low power that redefine connectivity.

As a leader in new technology directions, such as Linear Pluggable Optics (LPO), and next-generation data rates (200G per wavelength), CIG continues to shape the future of networking. Our commitment goes beyond products as we enable your networking requirements with state-of-the-art optical, electrical, and RF technologies.

1.6T Transceivers

Featured Products

↑
800G Transceivers

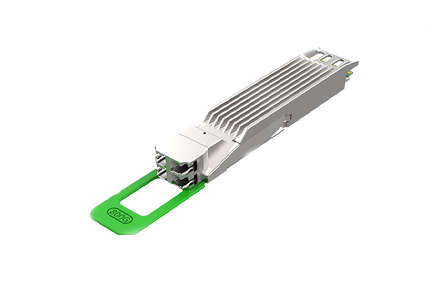

  • 2 x 800 Gigabit Ethernet (2×850 Gbit/s) Transceiver

    Aggregate data rate of 1700 Gbit/s

    Optical Interface: 106.25 GBd PAM4 per lane x 8, 2 x 800GBASE-DR4 / 4 x 400GBASE-DR2 / 8 x 200GBASE-DR1

    Electrical Interface: 53.125 GBd PAM4 per lane x 16, 2 x 800GAUI-8, 4 x 400GAUI-4 and 8 x 200GAUI-2

    Reach: Up to 500 m over Dual MPO-12 single mode fiber

    Form Factor: Compliant to OSFP-XD MSA hardware specification

    Optical Transmitter: 1310 nm EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: TBD

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 22.6mm x 124.8 mm x 15.5 mm (not including pull tab)

    Hot Z-Pluggable to 120-pad OSFP-XD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 compliant

    For data center and telecom applications

  • 2×400 Gigabit Ethernet (2×425 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4 x 2×4 wavelength 400GBASE-FR4

    Electrical Interface: Compliant to 53.125 GBd PAM4 x 2×4 lane 400GAUI-4

    Reach: Up to 2 km over Dual Duplex-LC single mode fiber

    Form Factor: Compliant to QSFP-DD800 MSA hardware specification

    Optical Transmitter: CWDM EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: 16 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 18.4 mm x 92.7 mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 76-pad QSFP-DD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    For data center and telecom applications

  • 8×100 Gigabit Ethernet (8×106 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s and Breakout data rate of 103.125 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4, 8x100GBASE-FR1 (DR8+), each lane

    Electrical Interface: Compliant to 53.125 GBd PAM4, 2×4 lane 400GAUI-4 (Aggregation mode) and 8x100GAUI-1 (Breakout mode)

    Reach: Up to 2 km over Dual MPO-12 single mode fiber

    Form Factor: Compliant to QSFP-DD800 MSA hardware specification

    Optical Transmitter: 1310 nm EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: 16 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 18.4 mm x 92.7 mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 76-pad QSFP-DD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    For data center, enterprise and telecom applications

  • 8×100 Gigabit Ethernet (8×106 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s and Breakout data rate of 103.125 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4, 8x100GBASE-FR1 (DR8+)，each lane

    Electrical Interface: Compliant to 53.125 GBd PAM4, 2×4 lane 400GAUI-4 (Aggregation mode) and 8x100GAUI-1 (Breakout mode)

    Reach: Up to 2 km over Dual MPO-12 single mode fiber

    Form Factor: Compliant to QSFP-DD800 MSA hardware specification

    Optical Transmitter: 1310nm CW-LD + SiP modulator

    Optical Receiver: PIN photodetector

    Power consumption: 14 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 18.4 mm x 92.7 mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 76-pad QSFP-DD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    For data center and telecom applications

  • 8×100 Gigabit Ethernet (8×106 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s and Breakout data rate of 103.125 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4, 8x100GBASE-FR1 (DR8+), each lane

    Electrical Interface: Compliant to 53.125 GBd PAM4, 2×4 lane 400GAUI-4 (Aggregation mode) and 8x100GAUI-1 (Breakout mode)

    Reach: Up to 2km over Dual MPO-12 single mode fiber

    Form Factor: Compliant to OSFP800 MSA hardware specification

    Optical Transmitter: 1310nm CW-LD + SiP modulator

    Optical Receiver: PIN photodetector

    Power consumption: 14 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 22.6 mm x 116.2 mm x 13.0 mm (not including pull tab)

    Hot Z-Pluggable to 60-pad OSFP800 electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant”

    For data center and telecom applications

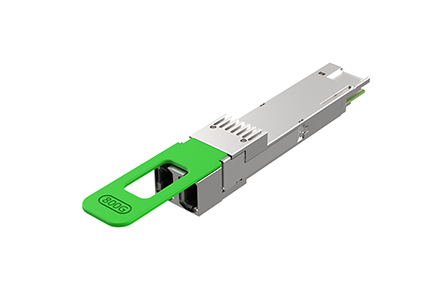

  • 8×100 Gigabit Ethernet (8×106 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s and Breakout data rate of 103.125 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4, 8x100GBASE-FR1 (DR8+) , each lane

    Electrical Interface: 53.125 GBd PAM4 x 8 lane linear interface w/o DSP

    Reach: Up to 2km over Dual MPO-12 single mode fiber

    Form Factor: Compliant to QSFP-DD800 MSA hardware specification

    Optical Transmitter: 1310nm CW-LD + SiP modulator

    Optical Receiver: PIN photodetector

    Power consumption: 8 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 18.4 mm x 92.7 mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 76-pad QSFP-DD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    For data center and telecom applications

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4 x 4 CWDM wavelength 400GBASE-FR4

    Electrical Interface: Compliant to 26.5625 GBd PAM4 x 8 lane 400GAUI-8

    Reach: Up to 2 km over duplex single mode fiber

    Form Factor: Compliant to QSFP-DD MSA hardware specification

    Optical Transmitter: CWDM EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: 12 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 18.4 mm x 92.9 mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 76-pad QSFP-DD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    Application

    For data center, enterprise, and telecom applications

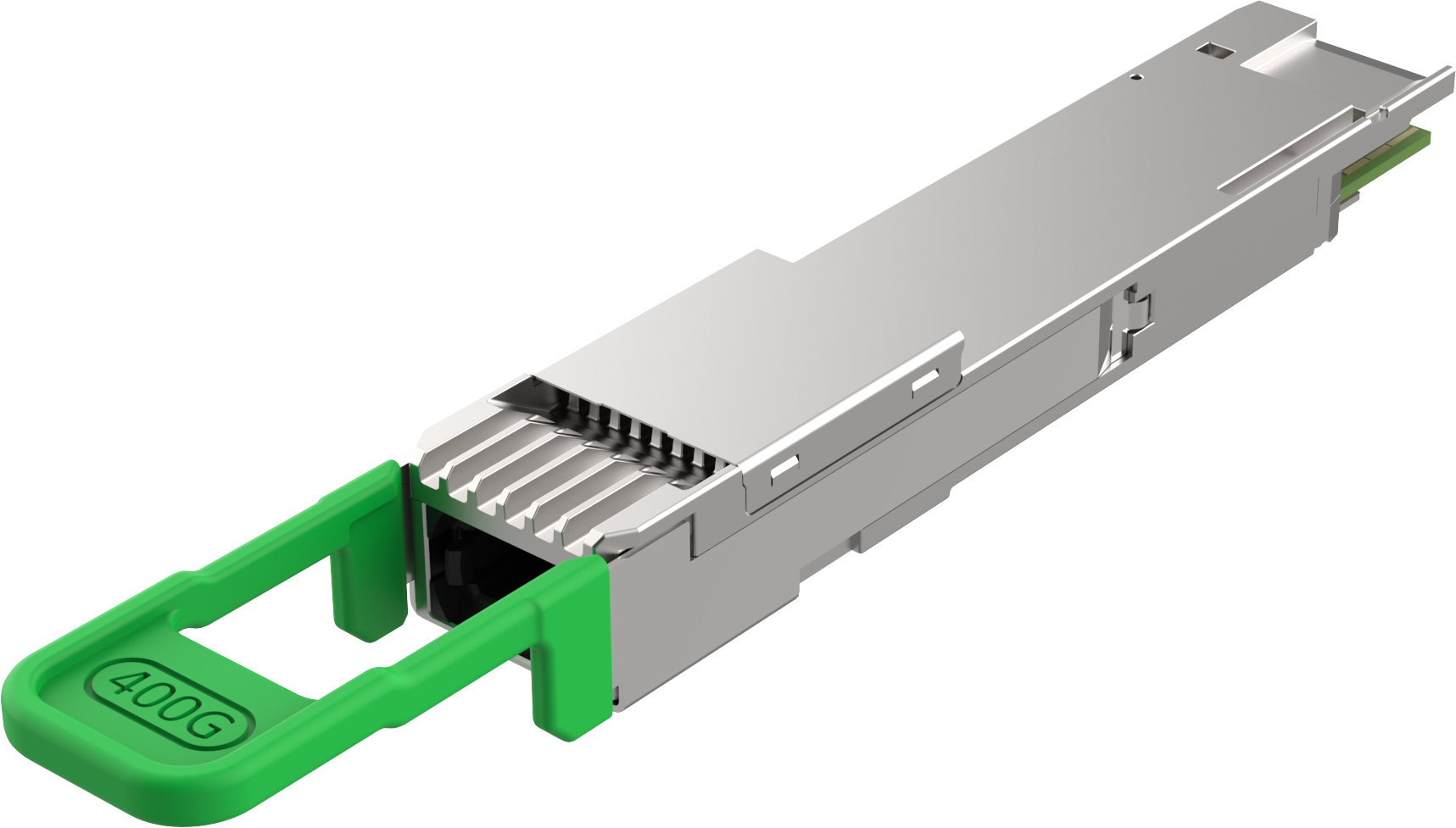

  • 4×100 Gigabit Ethernet (4x100Gbit/s) Transceiver

    Aggregate data rate of 425 Gbits and Breakout data rate of 103.125 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4, 4 x 100GBASE-FR1, each lane

    Electrical Interface: Compliant to 26.5625 GBd PAM4, 400GAUI-8 (Aggregation mode) and 4x100GAUI-2 (Breakout mode)

    Reach: Up to 2 km over MPO-12 single mode fiber

    Form Factor: Compliant to QSFP-DD MSA hardware specification

    Optical Transmitter: 1310nm EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: 12 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 18.4 mm x 92.9 mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 76-pad QSFP-DD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    Application

    For data center, enterprise, and telecom applications

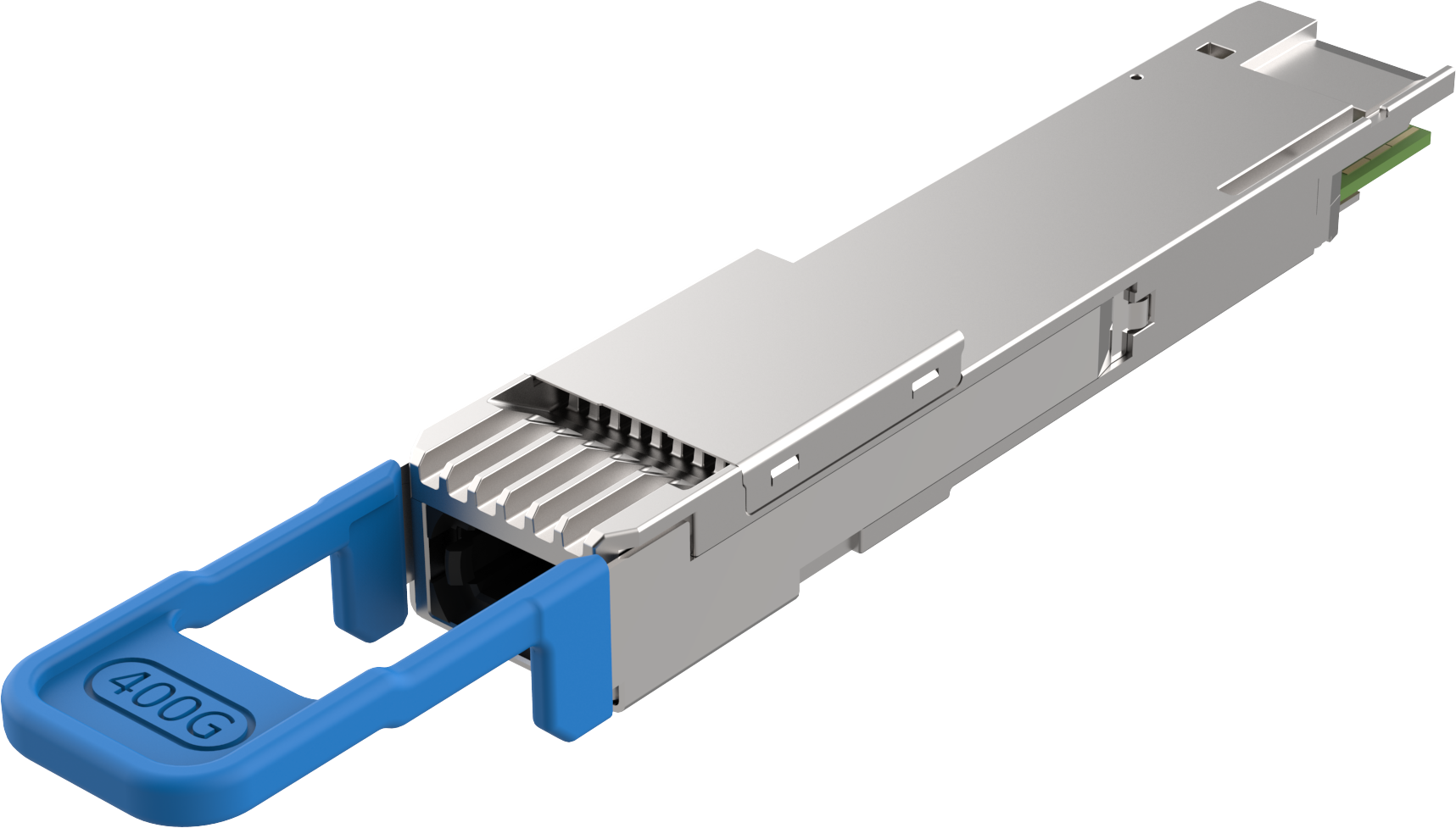

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s

    Optical Interface: To be Compliant to 53.125 GBd PAM4 x 4 CWDM wavelength 400GBASE-LR4

    Electrical Interface: Compliant to 26.5625 GBd PAM4 x 8 lane 400GAUI-8

    Reach: Up to 6 km (IEEE)/10km (MSA) over duplex single mode fiber

    Form Factor: Compliant to OSFP MSA hardware specification

    Optical Transmitter: CWDM EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: 12 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 22.6 mm x 100.2 mm x 13.0 mm (not including pull tab)

    Hot Z-Pluggable to 60-pad OSFP electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    Application

    For data center, enterprise, and telecom applications

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s

    Optical Interface: 53.125 GBd PAM4 per lane x 4, 400GBASE-FR1

    Electrical Interface:53.125 GBd PAM4 per lane x4 400GAUI-4

    Reach: Up to 500m over single mode fiber

    Form Factor: Compliant to QSFP112 hardware specification

    Connector Type: MPO-12

    Power consumption: 9 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 18.4 mm x 86.8 mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 52-pad QSFP112 electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 compliant

    For data center and telecom applications

  • 200 Gigabit Ethernet (212.5 Gbit/s) Transceiver

    Aggregate data rate of 212.5 Gbit/s

    Optical Interface: Compliant to 26.5625 GBd PAM4 x 4 CWDM wavelength 200GBASE-FR4

    Electrical Interface: Compliant to 26.5625 GBd PAM4 x 4 lane 200GAUI-4

    Reach: Up to 2 km over duplex single mode fiber

    Form Factor: Compliant to QSFP+ 28Gb/s 4X Pluggable Transceiver Specification (SFF-8665)

    Optical Transmitter: CWDM EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: 6 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L (with pull tab) x H): 18.4 mm x 72 (122) mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 38-pin electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    Application

    For data center, enterprise and telecom applications

400G Transceivers
200G Transceivers

For More Information, Please Contact Us

1.6T Transceivers

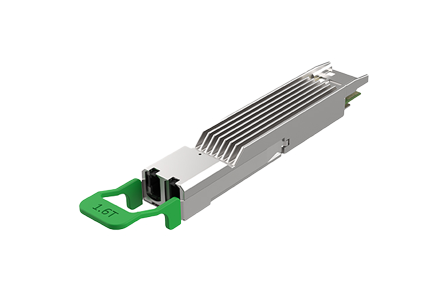

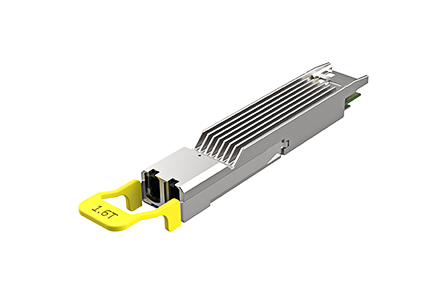

  • 2 x 800 Gigabit Ethernet (2×850 Gbit/s) Transceiver

    Aggregate data rate of 1700 Gbit/s

    Optical Interface: 106.25 GBd PAM4 per lane x 8, 2 x 800GBASE-DR4-2 / 4 x 400GBASE-DR2-2 / 8 x 200GBASE-FR1

    Electrical Interface: 53.125 GBd PAM4 per lane x 16, 2 x 800GAUI-8, 4 x 400GAUI-4 and 8 x 200GAUI-2

    Reach: Up to 2 km over Dual MPO-12 single mode fiber

    Form Factor: Compliant to OSFP-XD MSA hardware specification

    Optical Transmitter: 1310 nm EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: TBD

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 22.6mm x 124.8 mm x 15.5 mm (not including pull tab)

    Hot Z-Pluggable to 120-pad OSFP-XD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 compliant

    For data center and telecom applications

800G Transceivers

  • 2×400 Gigabit Ethernet (2×425 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4 x 2×4 wavelength 400GBASE-LR4

    Electrical Interface: Compliant to 53.125 GBd PAM4 x 2×4 lane 400GAUI-4

    Reach: Up to 10 km over Dual Duplex-LC single mode fiber

    Form Factor: Compliant to QSFP-DD800 MSA hardware specification

    Optical Transmitter: CWDM EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: 16 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 18.4 mm x 92.7 mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 76-pad QSFP-DD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    For data center and telecom applications

  • 2×400 Gigabit Ethernet (2×425 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4 x 2×4 wavelength 400GBASE-FR4

    Electrical Interface: Compliant to 53.125 GBd PAM4 x 2×4 lane 400GAUI-4

    Reach: Up to 2 km over Dual Duplex-LC single mode fiber

    Form Factor: Compliant to QSFP-DD800 MSA hardware specification

    Optical Transmitter: 1310nm CWDM CW-LD + SiP modulator

    Optical Receiver: PIN photodetector

    Power consumption: 14 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 18.4 mm x 92.7 mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 76-pad QSFP-DD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    For data center and telecom applications

  • 2×400 Gigabit Ethernet (2×425 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4 x 2×4 wavelength 400GBASE-FR4

    Electrical Interface: Compliant to 53.125 GBd PAM4 x 2×4 lane 400GAUI-4

    Reach: Up to 2 km over Dual Duplex-LC single mode fiber

    Form Factor: Compliant to OSFP800 MSA hardware specification

    Optical Transmitter: 1310nm CWDM CW-LD + SiP modulator

    Optical Receiver: PIN photodetector

    Power consumption: 14 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 22.6 mm x 116.2 mm x 13.0 mm (not including pull tab)

    Hot Z-Pluggable to 60-pad OSFP800 electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    For data center and telecom applications

  • 2×400 Gigabit Ethernet (2×425 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4 x 2×4 wavelength 400GBASE-FR4

    Electrical Interface: 53.125 GBd PAM4 x 8 lane linear interface w/o DSP

    Reach: Up to 2 km over Dual Duplex-LC single mode fiber

    Form Factor: Compliant to QSFP-DD800 MSA hardware specification

    Optical Transmitter: 1310nm CWDM CW-LD + SiP modulator

    Optical Receiver: PIN photodetector

    Power consumption: 8 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 18.4 mm x 92.7 mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 76-pad QSFP-DD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    For data center and telecom applications

  • 2×400 Gigabit Ethernet (2×425 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4 x 2×4 wavelength 400GBASE-FR4

    Electrical Interface: 53.125 GBd PAM4 x 8 lane linear interface w/o DSP

    Reach: Up to 2 km over Dual Duplex-LC single mode fiber

    Form Factor: Compliant to OSFP800 MSA hardware specification

    Optical Transmitter: 1310nm CWDM CW-LD + SiP modulator

    Optical Receiver: PIN photodetector

    Power consumption: 8 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 22.6 mm x 116.2 mm x 13.0 mm (not including pull tab)

    Hot Z-Pluggable to 60-pad OSFP800 electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    For data center and telecom applications

400G Transceivers

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4 x 4 lane 400GBASE-DR4 and 4 x 100GBASE-DR, each lane

    Electrical Interface: Compliant to 26.5625 GBd PAM4 x 8 lane 400GAUI-8

    Reach: Up to 500m over MPO-12 single mode fiber

    Form Factor: Compliant to QSFP-DD MSA hardware specification

    Optical Transmitter: 1310 nm EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: 12 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 18.4 mm x 92.9 mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 76-pad QSFP-DD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 compliant

    Application

    For Data Center

  • 4×100 Gigabit Ethernet (4x100Gbit/s) Transceiver

    Aggregate data rate of 103.125 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4, 4 x 100GBASE-LR1, each lane

    Electrical Interface: Compliant to 26.5625 GBd PAM4, 400GAUI-8 (Aggregation mode) and 4x100GAUI-2 (Breakout mode)

    Reach: Up to 10 km over MPO-12 single mode fiber

    Form Factor: Compliant to QSFP-DD MSA hardware specification

    Optical Transmitter: 1310 nm EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: 12 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 18.4 mm x 92.9 mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 76-pad QSFP-DD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    Application

    For data center, enterprise, and telecom applications

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s

    Optical Interface: Compliant to 53.125 Gbit/s PAM4 x 8 wavelength 400GBASE-LR8

    Electrical Interface: Compliant to 26.5625 Gbit/s x 16 lane 400GAUI-16

    Reach: Up to 10 km over single mode fiber

    Form Factor: Compliant to CFP8 MSA hardware specification

    Optical Transmitter: L-WDM EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: 16 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 40 mm x 102 mm x 9.5 mm (not including pull tab)

    Hot Z-Pluggable to 124-pin electrical connector

    Latching mechanism: Pull tab

    Management Interface: MDIO Management Interface

    Environment: RoHS6 compliant

    Application

    For enterprise and telecom applications

200G Transceivers

For More Information, Please Contact Us

50G/25G Transceivers
100G Transceivers

  • 2 x 800 Gigabit Ethernet (2×850 Gbit/s) Transceiver

    Aggregate data rate of 1700 Gbit/s

    Optical Interface: 106.25 GBd PAM4 per lane x 8, 2 x 800GBASE-FR4

    Electrical Interface: 53.125 GBd PAM4 per lane x 16, 2 x 800GAUI-8

    Reach: Up to 2 km over Dual Duplex-LC single mode fiber

    Form Factor: Compliant to OSFP-XD MSA hardware specification

    Optical Transmitter: 1310 nm CWDM EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: TBD

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 22.6mm x 124.8 mm x 15.5 mm (not including pull tab)

    Hot Z-Pluggable to 120-pad OSFP-XD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 compliant

    For data center and telecom applications

  • 8×100 Gigabit Ethernet (8×106 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s and Breakout data rate of 103.125 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4, 8x100GBASE-DR (DR8) each lane

    Electrical Interface: Compliant to 53.125 GBd PAM4, 2×4 lane 400GAUI-4 (Aggregation mode) and 8x100GAUI-1 (Breakout mode)

    Reach: Up to 500m over Dual MPO-12 single mode fiber

    Form Factor: Compliant to QSFP-DD800 MSA hardware specification

    Optical Transmitter: 1310 nm EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: 16 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 18.4 mm x 92.7 mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 76-pad QSFP-DD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    For data center and telecom applications

  • 8×100 Gigabit Ethernet (8×106 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s and Breakout data rate of 103.125 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4, 8x100GBASE-DR (DR8)，each lane

    Electrical Interface: Compliant to 53.125 GBd PAM4, 2×4 lane 400GAUI-4 (Aggregation mode) and 8x100GAUI-1 (Breakout mode)

    Reach: Up to 500m over Dual MPO-12 single mode fiber

    Form Factor: Compliant to QSFP-DD800 MSA hardware specification

    Optical Transmitter: 1310nm CW-LD + SiP modulator

    Optical Receiver: PIN photodetector

    Power consumption: 14 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 18.4 mm x 92.7 mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 76-pad QSFP-DD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    For data center and telecom applications

  • 8×100 Gigabit Ethernet (8×106 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s and Breakout data rate of 103.125 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4, 8x100GBASE-DR (DR8), each lane

    Electrical Interface: Compliant to 53.125 GBd PAM4, 2×4 lane 400GAUI-4 (Aggregation mode) and 8x100GAUI-1 (Breakout mode)

    Reach: Up to 500m over Dual MPO-12 single mode fiber

    Form Factor: Compliant to OSFP800 MSA hardware specification

    Optical Transmitter: 1310nm CW-LD + SiP modulator

    Optical Receiver: PIN photodetector

    Power consumption: 14 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 22.6 mm x 116.2 mm x 13.0 mm (not including pull tab)

    Hot Z-Pluggable to 60-pad OSFP800 electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant”

    For data center and telecom applications

  • 8×100 Gigabit Ethernet (8×106 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s and Breakout data rate of 103.125 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4, 8x100GBASE-DR (DR8) , each lane

    Electrical Interface: 53.125 GBd PAM4 x 8 lane linear interface w/o DSP

    Reach: Up to 500m over Dual MPO-12 single mode fiber

    Form Factor: Compliant to QSFP-DD800 MSA hardware specification

    Optical Transmitter: 1310nm CW-LD + SiP modulator

    Optical Receiver: PIN photodetector

    Power consumption: 8 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 18.4 mm x 92.7 mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 76-pad QSFP-DD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    For data center and telecom applications

  • 8×100 Gigabit Ethernet (8×106 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s and Breakout data rate of 103.125 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4, 8x100GBASE-DR (DR8), each lane

    Electrical Interface: 53.125 GBd PAM4 x 8 lane linear interface w/o DSP

    Reach: Up to 500m over Dual MPO-12 single mode fiber

    Form Factor: Compliant to OSFP800 MSA hardware specification

    Optical Transmitter: 1310nm CW-LD + SiP modulator

    Optical Receiver: PIN photodetector

    Power consumption: 8 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 22.6 mm x 116.2 mm x 13.0 mm (not including pull tab)

    Hot Z-Pluggable to 60-pad OSFP800 electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    For data center and telecom applications

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s

    Optical Interface: To be Compliant to 53.125 GBd PAM4 x 4 CWDM wavelength 400GBASE-LR4

    Electrical Interface: Compliant to 26.5625 GBd PAM4 x 8 lane 400GAUI-8

    Reach: Up to 6 km (IEEE)/10km (MSA) over duplex single mode fiber

    Form Factor: Compliant to QSFP-DD MSA hardware specification

    Optical Transmitter: CWDM EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: 12 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 18.4 mm x 92.9 mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 76-pad QSFP-DD electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    Application

    For data center, enterprise, and telecom applications

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s

    Optical Interface: Compliant to 53.125 GBd PAM4 x 4 CWDM wavelength 400GBASE-FR4

    Electrical Interface: Compliant to 26.5625 GBd PAM4 x 8 lane 400GAUI-8

    Reach: Up to 2 km over duplex single mode fiber

    Form Factor: Compliant to OSFP MSA hardware specification

    Optical Transmitter: CWDM EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: 12 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 22.6 mm x 100.2 mm x 13.0 mm (not including pull tab)

    Hot Z-Pluggable to 60-pad OSFP electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    Application

    For data center, enterprise, and telecom applications

  • 200 Gigabit Ethernet (212.5 Gbit/s) Transceiver

    Aggregate data rate of 212.5 Gbit/s

    Optical Interface: Compliant to 26.5625 GBd PAM4 x 4 LAN-WDM wavelength 200GBASE-LR4

    Electrical Interface: Compliant to 26.5625 GBd PAM4 x 4 lane 200GAUI-4

    Reach: Up to 10 km over duplex single mode fiber

    Form Factor: Compliant to QSFP+ 28Gb/s 4X Pluggable Transceiver Specification (SFF-8665)

    Compliant to QSFP28 4X Hardware and Electrical Specification (SFF-8679)

    Optical Transmitter: LAN-WDM EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: 7 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L (with pull tab) x H): 18.4 mm x 72 (122) mm x 8.5 mm (not including pull tab)

    Hot Z-Pluggable to 38-pin electrical connector

    Latching mechanism: Pull tab

    Management Interface: Two-wire common management interface

    Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    Application

    For data center, enterprise, and telecom applications

  • 100 Gigabit Ethernet Single Protocol Transceiver

    Data Rate: 103.125 Gbit/s Single Rate

    Optical Interface: 25.78125 Gbps per lane x 4, 4WDM MSA 4WDM-40

    Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4

    Reach: Up to 40 km over single mode fiber

    Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)

    Connector Type: Duplex LC

    Low Power Consumption: 4.5 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire management interface protocol (SFF-8636)

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

  • 100 Gigabit Ethernet Single Protocol Transceiver

    Data Rate: 103.125 Gbit/s Single Rate

    Optical Interface: 53.125 GBd PAM4, 100GBASE-LR

    Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 / 26.5625 Gbps per lane x 4, 100GAUI-4

    Support RS(544,514) FEC coder/decoder function

    Reach: Up to 10 km over single mode fiber

    Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)

    Connector Type: Duplex LC

    Low Power Consumption: 3.5 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire management interface protocol (SFF-8636)

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

  • 100 Gigabit Ethernet Single Protocol Transceiver

    Data Rate: 103.125 Gbit/s Single Rate

    Optical Interface: 25.78125 Gbps per lane x 4, ZR4

    Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4

    Reach: Up to 80 km over single mode fiber

    Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)

    Connector Type: Duplex LC

    Low Power Consumption: 5.5 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire management interface protocol (SFF-8636)

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

  • 100 Gigabit Ethernet Single Protocol Transceiver

    Data Rate: 103.125 Gbit/s Single Rate

    Optical Interface: 53.125 GBd PAM4, 100GBASE-LR

    Electrical Interface: 26.5625 GBd PAM4 per lane x 2, 100GAUI-2

    Reach: Up to 10 km over single mode fiber

    Form Factor: Compliant to SFP-DD MSA hardware specification

    Connector Type: Duplex LC

    Low Power Consumption: 3.5 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire common management interface (SFP-DD MIS)

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

  • 100 Gigabit Ethernet Single Protocol Transceiver

    Data Rate: 103.125 Gbit/s Single Rate

    Optical Interface: 53.125 GBd PAM4, 100GBASE-LR1

    Electrical Interface: 53.125 GBd PAM4, 100GAUI-1

    Reach: Up to 10 km over single mode fiber

    Form Factor: Compliant to SFP-DD MSA hardware specification

    Connector Type: Duplex LC

    Low Power Consumption: 3.5 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire common management interface

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

  • 25 Gigabit Ethernet Transceiver

    Data Rate: 25.781 Gbit/s

    Optical Interface: 25.78125 Gbps x 1, 25GBASE-LR

    Electrical Interface: 25.78125 Gbps x 1, 25GAUI

    Reach: Up to 10km over single mode fiber

    Form Factor: Compliant to SFP28 (SFF-8402)

    Connector Type: Duplex LC

    Power Consumption: 1.0 W max

    Operating Case Temperature: -40 to 85 degC

    Management Interface: Two-wire management interface protocol (SFF-8472)

    Environmental: RoHS10 compliant

    For wireless fronthaul and enterprise applications

  • 25 Gigabit Ethernet Transceiver

    Data Rate: 25.781 Gbit/s

    Optical Interface: 25.78125 Gbps x 1

    Electrical Interface: 25.78125 Gbps x 1, 25GAUI

    Reach: Up to 20km over single mode fiber, Bi-directional

    Form Factor: Compliant to SFP28 (SFF-8402)

    Connector Type: LC-single optical receptacle

    Power Consumption: 1.5 W max

    Operating Case Temperature: -40 to 85 degC

    Management Interface: Two-wire management interface protocol (SFF-8472)

    Environmental: RoHS10 compliant

    For wireless fronthaul and enterprise applications

100G Transceivers

  • 100 Gigabit Ethernet & OTU4 Transceiver

    Data Rate: 103.125 Gbit/s & 111.810 Gbit/s Dual Rate

    Optical Interface: 25.78125 Gbps per lane x 4, 100GBASE-LR4 / 27.95 Gbps per lane x 4, ITU-T G.959.1 4I1-9D1F

    Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 / 27.95 Gbps per lane x 4, CEI-28G-VSR

    Reach: Up to 10 km over single mode fiber

    Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)

    Connector Type: Duplex LC

    Low Power Consumption: 4.0 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire management interface protocol (SFF-8636)

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

  • 100 Gigabit Ethernet Single Protocol Transceiver

    Data Rate: 103.125 Gbit/s Single Rate

    Optical Interface: 53.125 GBd PAM4, 100GBASE-DR

    Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 / 26.5625 Gbps per lane x 4, 100GAUI-4

    Support RS(544,514) FEC coder/decoder function

    Reach: Up to 500 m over single mode fiber

    Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)

    Connector Type: Duplex LC

    Low Power Consumption: 3.5 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire management interface protocol (SFF-8636)

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

  • 100 Gigabit & 40 Gigabit Ethernet Transceiver

    Data Rate: 103.125 Gbit/s & 41.25 Gbit/s Dual Rate

    Optical Interface: 25.78125 Gbps per lane x 4, 100GBASE-SR4 / 10.3125 Gbps per lane x 4, 40GBASE-SR4

    Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 / 10.3125 Gbps per lane x 4, XLAUI-4

    Reach: Up to 100m/OM4, 70m/OM3 (100GbE), 150m/OM4, 100m/OM3 (40GbE)

    Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)

    Connector Type: MPO-12

    Low Power Consumption: 2.5 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire management interface protocol (SFF-8636)

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

  • 100 Gigabit Ethernet Single Protocol Transceiver

    Data Rate: 103.125 Gbit/s Single Rate

    Optical Interface: 25.78125 Gbps per lane x 4, CWDM4 MSA

    Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4

    Reach: Up to 2 km over single mode fiber

    Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)

    Connector Type: Duplex LC

    Low Power Consumption: 3.5 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire management interface protocol (SFF-8636)

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

  • 100 Gigabit Ethernet Single Protocol Transceiver

    Data Rate: 103.125 Gbit/s Single Rate

    Optical Interface: 25.78125 Gbps per lane x 4, 100GBASE-LR4

    Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4

    Reach: Up to 10 km over single mode fiber

    Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)

    Connector Type: Duplex LC

    Low Power Consumption: 3.5 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire management interface protocol (SFF-8636)

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

  • 100 Gigabit Ethernet Single Protocol Transceiver

    Data Rate: 103.125 Gbit/s Single Rate

    Optical Interface: 53.125 GBd PAM4, 100GBASE-FR

    Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 / 26.5625 Gbps per lane x 4, 100GAUI-4

    Support RS(544,514) FEC coder/decoder function

    Reach: Up to 2 km over single mode fiber

    Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)

    Connector Type: Duplex LC

    Low Power Consumption: 3.5 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire management interface protocol (SFF-8636)

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

  • 100 Gigabit Ethernet, OTU4 & 128G Fibre Channel Transceiver

    Data Rate: 103.125 Gbit/s, 111.810 Gbit/s & 112.2 Gbit/s Multi Rate

    Optical Interface: 25.78125 Gbps per lane x 4, 100GBASE-SR4 / 27.95 Gbps per lane x 4, OTU4 / 28.05 Gbps per lane x 4, 128G Fibre Channel

    Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 / 27.95 Gbps per lane x 4, CEI-28G-VSR / 28.05 Gbps per lane x 4, 128G Fibre Channel

    Reach: Up to 100m/OM4, 70m/OM3 (100GbE)

    Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)

    Connector Type: MPO-12

    Low Power Consumption: 2.5 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire management interface protocol (SFF-8636)

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

  • 100 Gigabit Ethernet Single Protocol Transceiver

    Data Rate: 103.125 Gbit/s Single Rate

    Optical Interface: 53.125 GBd PAM4, 100GBASE-DR

    Electrical Interface: 26.5625 GBd PAM4 per lane x 2, 100GAUI-2

    Reach: Up to 500 m over single mode fiber

    Form Factor: Compliant to SFP-DD MSA hardware specification

    Connector Type: Duplex LC

    Low Power Consumption: 3.5 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire common management interface (SFP-DD MIS)

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

  • 100 Gigabit Ethernet Single Protocol Transceiver

    Data Rate: 103.125 Gbit/s Single Rate

    Optical Interface: 53.125 GBd PAM4, 100GBASE-DR

    Electrical Interface: 53.125 GBd PAM4, 100GAUI-1

    Reach: Up to 500 m over single mode fiber

    Form Factor: Compliant to SFP-DD MSA hardware specification

    Low Power Consumption: 3.5 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire common management interface

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

50G/25G Transceivers

  • 25 Gigabit Ethernet Transceiver

    Data Rate: 25.781 Gbit/s

    Optical Interface: 25.78125 Gbps x 1

    Electrical Interface: 25.78125 Gbps x 1, 25GAUI

    Reach: Up to 20km over single mode fiber

    Form Factor: Compliant to SFP28 (SFF-8402)

    Connector Type: Duplex LC

    Power Consumption: 1.0 W max

    Operating Case Temperature: -40 to 85 degC

    Management Interface: Two-wire management interface protocol (SFF-8472)

    Environmental: RoHS10 compliant

    For wireless fronthaul and enterprise applications

↑

  • 400 Gigabit Ethernet (425 Gbit/s) Transceiver

    Aggregate data rate of 425 Gbit/s

    Optical Interface: Compliant to 53.125 Gbit/s PAM4 x 8 wavelength 400GBASE-LR8

    Electrical Interface: Compliant to 26.5625 Gbit/s x 16 lane 400GAUI-16

    Reach: Up to 10 km over single mode fiber

    Form Factor: Compliant to CFP8 MSA hardware specification

    Optical Transmitter: L-WDM EA-DFB

    Optical Receiver: PIN photodetector

    Power consumption: 16 W max

    Operating case temperature: 0 to 70 deg C

    Size (W x L x H): 40 mm x 102 mm x 9.5 mm (not including pull tab)

    Hot Z-Pluggable to 124-pin electrical connector

    Latching mechanism: Pull tab

    Management Interface: MDIO Management Interface

    Environment: RoHS6 compliant

    Application

    For enterprise and telecom applications

  • 100 Gigabit & 40 Gigabit Ethernet Transceiver

    Data Rate: 103.125 Gbit/s & 41.25 Gbit/s Dual Rate

    Electrical Interface: 25.78125 Gbps per lane x 4, CAUI-4 / 10.3125 Gbps per lane x 4, XLAUI-4

    Cable length: 1 m to 100 m

    Form Factor: Compliant to QSFP28 Pluggable Transceiver Specification (SFF-8665)

    Low Power Consumption: 2.5 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire management interface protocol (SFF-8636)

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

  • 100 Gigabit Ethernet Single Protocol Transceiver

    Data Rate: 103.125 Gbit/s Single Rate

    Optical Interface: 53.125 GBd PAM4, 100GBASE-FR

    Electrical Interface: 26.5625 GBd PAM4 per lane x 2, 100GAUI-2

    Reach: Up to 2 km over single mode fiber

    Form Factor: Compliant to SFP-DD MSA hardware specification

    Connector Type: Duplex LC

    Low Power Consumption: 3.5 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire common management interface (SFP-DD MIS)

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

  • 100 Gigabit Ethernet Single Protocol Transceiver

    Data Rate: 103.125 Gbit/s Single Rate

    Optical Interface: 53.125 GBd PAM4, 100GBASE-FR1

    Electrical Interface: 53.125 GBd PAM4, 100GAUI-1

    Reach: Up to 2 km over single mode fiber

    Form Factor: Compliant to SFP-DD MSA hardware specification

    Low Power Consumption: 3.5 W max

    Operating Case Temperature: 0 to 70 degC

    Management Interface: Two-wire common management interface

    Environmental: RoHS10 compliant

    For data center, enterprise and telecom applications

  • 50 Gigabit Ethernet Transceiver

    Data Rate: 53.125 Gbit/s

    Optical Interface: 26.5625 GBd PAM4, 50GBASE-LR

    Electrical Interface: 26.5625 GBd PAM4, 50GAUI-1

    Reach: Up to 10km over single mode fiber

    Form Factor: Compliant to SFP28 (SFF-8402)

    Connector Type: Duplex LC

    Power Consumption: 1.5W max /1.8W max

    Operating Case Temperature: 0 to 70 degC / -40 to 85 degC

    Management Interface: Two-wire management interface protocol (SFF-8472)

    Environmental: RoHS10 compliant

    For wireless fronthaul and enterprise applications

  • 25 Gigabit Ethernet Transceiver

    Data Rate: 25.781 Gbit/s

    Optical Interface: 25.78125 Gbps x 1, 25GBASE-BR10

    Electrical Interface: 25.78125 Gbps x 1, 25GAUI

    Reach: Up to 10km over single mode fiber, Bi-directional

    Form Factor: Compliant to SFP28 (SFF-8402)

    Connector Type: LC-single optical receptacle

    Power Consumption: 1.2 W max

    Operating Case Temperature: -40 to 85 degC

    Management Interface: Two-wire management interface protocol (SFF-8472)

    Environmental: RoHS10 compliant

    For wireless fronthaul and enterprise applications
